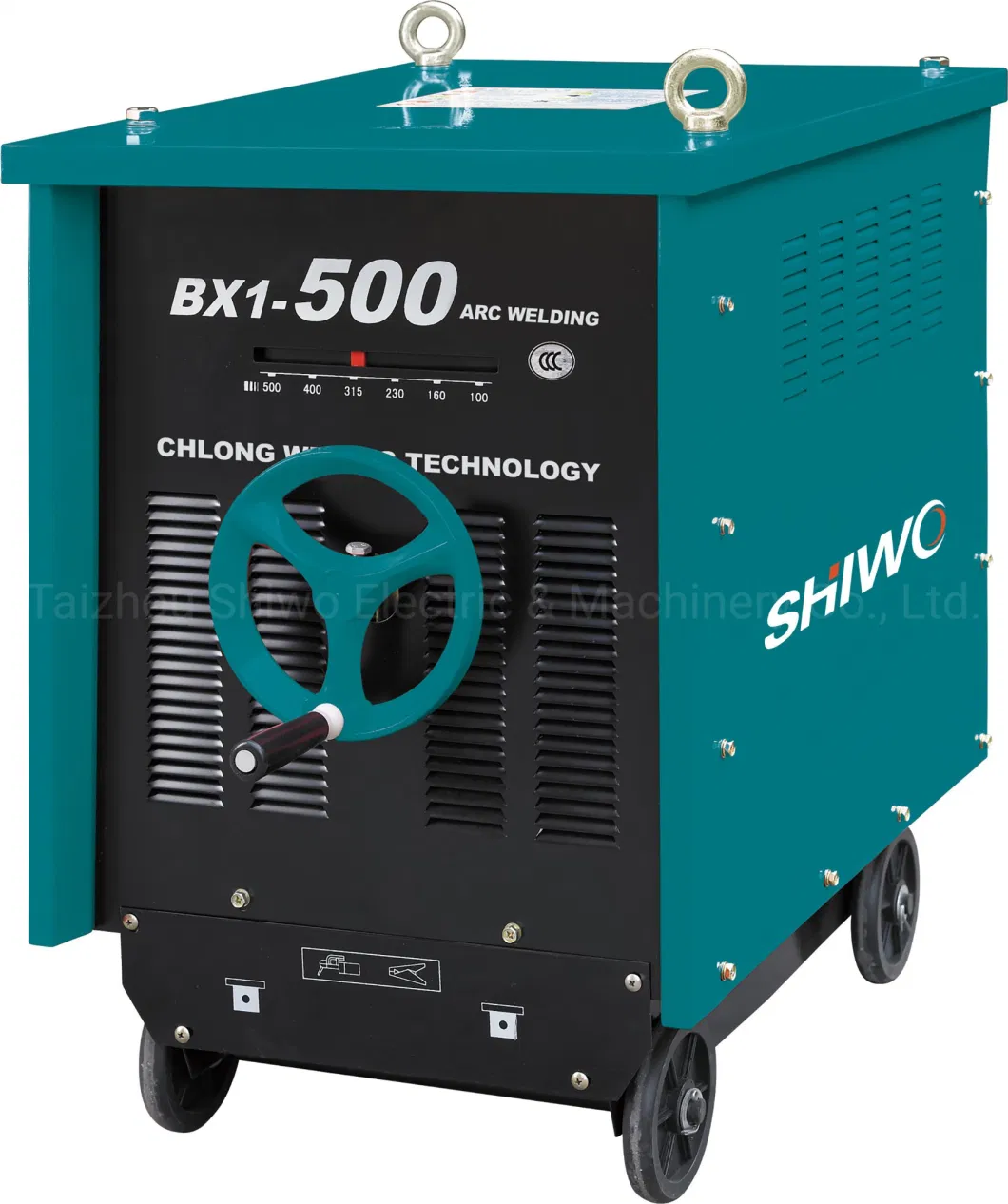

Bx1-400 Inverter AC 220V 380V Arc Welder 400AMP Welder
$300
$293
Compare
1
BX1-
FEATURES:
*Single phase,air-cooling structure
*Suitable for welding carbon steel
*Stable arc less spatter and deep penetration, ensure good welding quality.
*Simple structure,easy to operate and maintain.
| Item | BX1-160 | BX1-200 | BX1-250 | BX1-315 | BX1-400 | BX1-500 |
| Power Voltage(V) | 220/380 | 220/380 | 220/380 | 220/380 | 220/380 | 220/380 |
| Rated input Power(KVA) | 9.2 | 13.2 | 16.5 | 24 | 24 | 24 |
| Frequency(HZ) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| No-load voltage(V) | 55 | 55 | 55 | 60 | 60 | 60 |
| Output current range(A) | 40-160 | 45-180 | 50-250 | 60-315 | 60-400 | 60-500 |
| Duty cycle(%) | 20 | 20 | 20 | 20 | 20 | 20 |
| Insulation class | F | F | F | F | F | F |
| Weight(KG) | 14.5 | 14.5 | 15 | 17.5 | 22 | 24 |
| Measurement(MM) | 580*425*620 | 580*425*620 | 580*425*620 | 665*485*705 | 665*485*705 | 665*485*705 |
| Protection Class | IP21S | IP21S | IP21S | IP21S | IP21S | IP21S |
| Usable Electrode(MM) | 1.6-3.2 | 1.6-4.0 | 1.6-4.0 | 1.6-5.0 | 1.6-5.0 | 1.6-5.0 |
