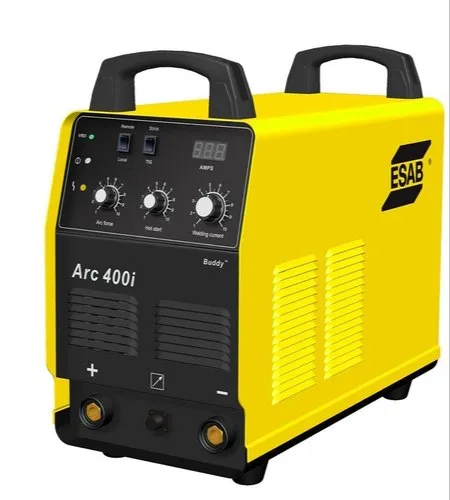

ESAB Buddy Arc 400i Welding Equipment, 50-400A
$976
$840
Compare
4
2
Product Specification
| Brand | ESAB |
| Model | Buddy Arc 400i |
| Welding Current Range | 50-400A |
| Phase | 3 Phase |
| Working Voltage | 400V+- 15% |
| Duty Cycle | 310A@100% |
| Technology | IGBT |
| Weight | 35.5 Kg |
| Dimension (LxBxH) | 590 x 295 x 525 mm |
| Product Type | New |
| Wire diameter | 0.8 – 1.6 (1.2 – 1.6) mm |
| Wire feed Speed | 1.5 – 20 m/min |
| Open circuit voltage(OCV), V | 65 |
| Enclosure class | IP 21 |
| Voltage range | 16.5 – 34 |
Product Description
The Buddy™ Arc 400i & 400i XC are heavy-duty, fan cooled, IGBT based inverter controlled power sources for MMA / TIG (scratch-start) welding. A wide current range and powerful welding performance make the Buddy™ Arc machines suitable for a wide range of MMA electrode types, such as:- General purpose – Low-hydrogen- Stainless steel- CellulosicThe Buddy™ Arc 400i XC model has controlled welding dynamics that provides even better weld properties for welding pipe root passes, e.g. with cellulosic electrodes.The Buddy™ Arc machines are also capable of performing TIG welding with precise current control. All you need is an optional TIG-torch with a gas valve, a gas regulator and a cylinder of gas. You can weld mild steel or stainless steel material with or without filler material.
