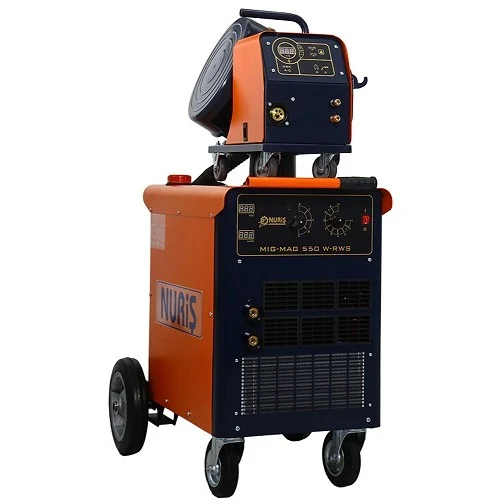

Nuris Mig – Mag Welding Machine – 550W
$4 300
$3 639
Compare
3
FEATURED
- EHGHWMIG/MAG 350 NC and MIG/MAG 350 A-RWS is a professional, easy-to-use, compact, reliable, robust, economical and semi-automatic MIG/MAG
- MIG/MAG 350 NC and MIG/MAG 350 A-RWS is a professional, easy-to-use, compact, reliable, robust, economical and semi-automatic MIG/MAG welding machine with excellent welding characteristics, offering the ability to weld all solid and cored wire types.
- Detachable wire feed system offers versatile solutions in the mig welding.
- Air cooled and water cooled options are available.
- Precise voltage adjustment with 3 coarse, 10 fine, a total of 30 steps
- 2/4 cycle trigger modes
- Overheating protection and warning gauge
- Powerful transformer, high efficiency welding power
- Ability to weld with all kinds of solid and cored welding wire
- Ability to gas feeding without wire feed.
- Ability to wire feeding without gas feed.
- Wire speed soft start setting
- 4-roller wire feeding system provides better feeding in long torches and the capability of welding soft wires such as aluminum and core without deforming them.
- High-tech microprocessor-controlled wire feeding system
- Digital voltmeter and ammeter
- Function to memorize the last performed operation (Current, voltage, welding parameters)
| PARAMETER | UNIT | MIG / MAG 550 W-RWS |
| System Voltage | V AC | 380 V, 3 Phase, 50/60 Hz |
| Input Power | KVA | 23 |
| Input Current | A | 27,5 |
| Current Adjustment Range | A | 50-600 |
| Open Circuit Voltage | V | 46 |
| Voltage Adjustment Range | V | 18-46 |
| Operating Regimes (40 °C) | % 60 | 500 A |
| Operating Regimes (40 °C) | % 100 | 350 A |
| Protection Class | IP23S | |
| Type Of Current | A | DC |
| Current Setting | A | 4×10 Kademe (Stages) |
| Welding Wire Diameter | mm | 0,80-1,00- 1,20- 1,60 |
| Wire Draining Speed Field | m/min | 2-20 |
| Machines Dimensions | mm | W:515 x H:915 x D:1025 |
| Weight | kg | 177 Vario: 23 |
| PARAMETER | UNIT | MIG / MAG 550 W-RWS |
| Torch | m | 3 |
| Welding Cable With Electrode Holder | m | 3 |
| Gas Regulator | ad | 1 |
| CO2 Heater (Optional) | ad | 1 |
